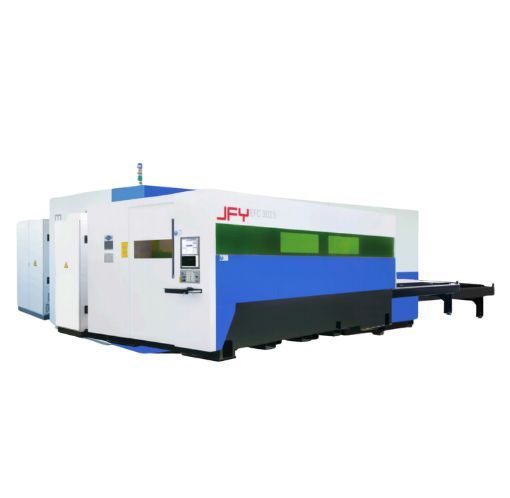

Máy cắt laser JFY dòng EFC

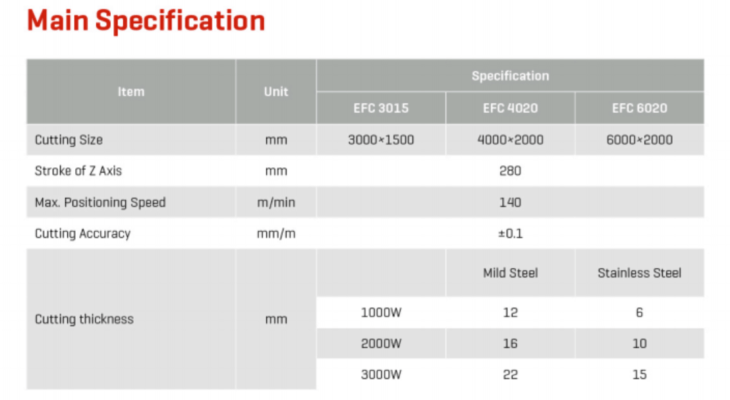

Thong so ky thuat
Thong so ky thuat
  • Nguồn laser công suất tầm trung, thiết kế thông minh, tiết kiệm chi phí

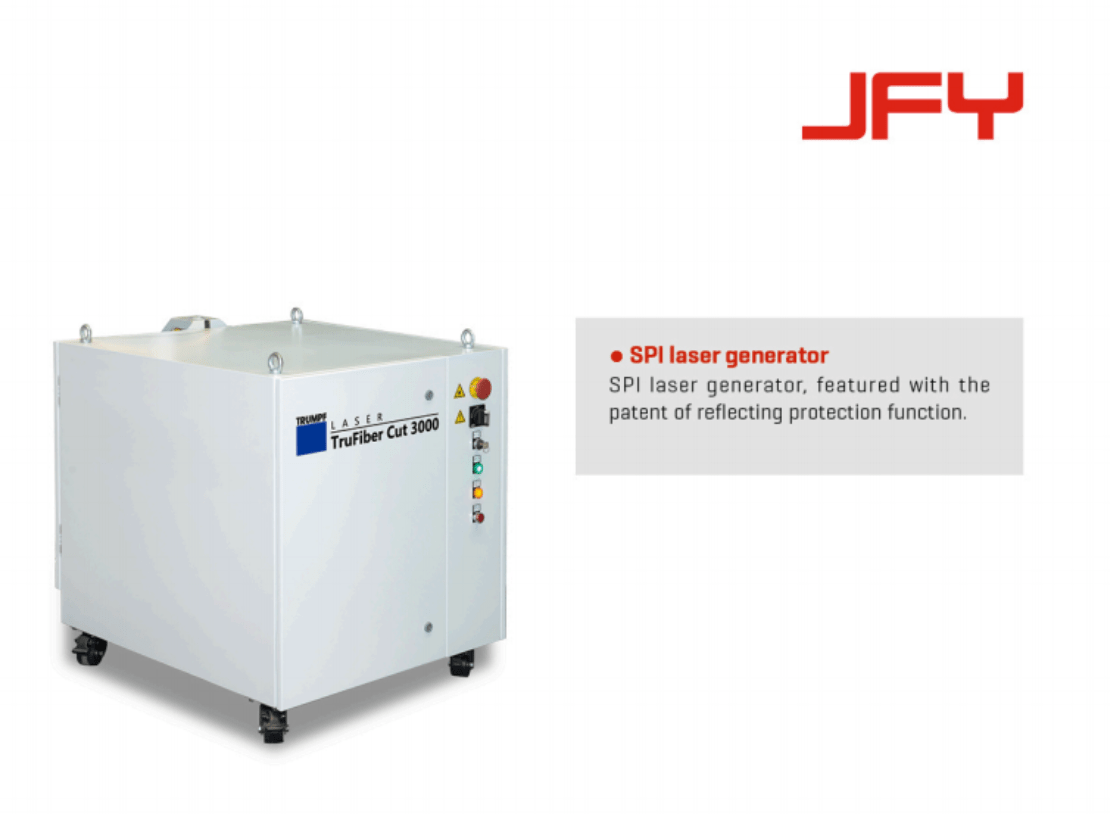

  • Hiệu suất cắt ổn định với nguồn laser SPI 1000W
  • Đầu cắt Precitec của Đức với chất lượng đường cắt cao
  • Dữ liệu cắt hoàn hảo giúp công việc trở lên dễ dàng hơn
  • Chỉ mất 10 giây để thay đổi bàn cắt

Thông số kỹ thuật

Thương hiệu: JFY

Model: EFC

Sản phẩm tương tự

ByStar Fiber_Thumb

ByStar Fiber 6225/8025 – Technical Data

Technical data ByStar Fiber 6225 ByStar Fiber 8025
Length 20,193 mm 23,800 mm
Width 6,909 mm 6,909 mm
Height 3,200 mm 3,200 mm
Nominal sheet size (X) 6,198 mm 8,103 mm
Nominal sheet size (Y) 2,540 mm 2,540 mm
Cutting area (X) 6,248 mm 8,153 mm
Cutting area (Y) 2,591 mm 2,591 mm
Cutting area (Z) 152 mm 152 mm
Max. positioning speed parallel axis X/Y 120,000 mm/min 120,000 mm/min
Max. simultaneous positioning speed 169,698 mm/min 169,698 mm/min
Bilateral repeatability of positioning of one axis R (following ISO 230-2:2014(E)) 0.025 mm 0.025 mm
Averaged, bilateral position deviation of one axis M (following ISO 230-2:2014(E)) 0.102 mm 0.102 mm
Edge detection accuracy (±) 0.508 mm 0.508 mm
Max. workpiece weight 3,647 kg 4,708 kg
Maximum allowed workpiece weight on both shuttle tables 7,294 kg 9,417 kg
Machine weight (without exhaust, chiller and conveyor) 21,999 kg 26,989 kg
Table changeover time 51 s 79 s
Operation BySoft Cell Control Cut; Touchscreen and manual control unit BySoft Cell Control Cut; Touchscreen and manual control unit

Laser Source Technical Data – Fiber 3000 to Fiber 10000

Laser source Fiber 3000 Fiber 4000 Fiber 6000 Fiber 10000
Power 3 kW 4 kW 6 kW 10 kW
Range of adjustment 300–3,000 W 400–4,000 W 400–6,000 W 400–10,000 W
Wavelength 1,070 nm 1,070 nm 1,070 nm 1,070 nm
Steel (max. cutting sheet thickness) 19 mm 19 mm 25 mm 25 mm
Steel (with option BeamShaper) 19 mm 25 mm 30 mm 30 mm
Steel (Option “Advanced Applications”) — — — —
Stainless steel (max. cutting sheet thickness) 13 mm 15 mm 30 mm 30 mm
Stainless steel (Option “Advanced Applications”) — — — —
Aluminum (max. cutting sheet thickness) 13 mm 19 mm 30 mm 30 mm
Aluminum (Option “Advanced Applications”) — — — —
Brass (max. sheet thickness) 6 mm 8 mm 15 mm 15 mm
Copper (max. sheet thickness) 6 mm 8 mm 12 mm 15 mm
Total electric consumption of system ByStar Fiber 6225 21 kW 22 kW 23 kW 27 kW
Total electric consumption of system ByStar Fiber 8025 21 kW 23 kW 23 kW 27 kW

Laser Source Technical Data – Fiber 12000 to Fiber 30000

Laser source Fiber 12000 Fiber 15000 Fiber 20000 Fiber 30000
Power 12 kW 15 kW 20 kW 30 kW
Range of adjustment 1,200–12,000 W 400–15,000 W 400–20,000 W 400–30,000 W
Wavelength 1,070 nm 1,070 nm 1,070 nm 1,070 nm
Steel (max. cutting sheet thickness) 25 mm 25 mm 25 mm 40 mm
Steel (with option BeamShaper) 30 mm 30 mm — —
Steel (Option “Advanced Applications”) — 51 mm 51 mm —
Stainless steel (max. cutting sheet thickness) 30 mm 40 mm 40 mm 40 mm
Stainless steel (Option “Advanced Applications”) — 51 mm 51 mm 60 mm
Aluminum (max. cutting sheet thickness) 30 mm 40 mm 40 mm 40 mm
Aluminum (Option “Advanced Applications”) — 51 mm 51 mm 60 mm
Brass (max. sheet thickness) 15 mm 19 mm 19 mm 19 mm
Copper (max. sheet thickness) 15 mm 19 mm 19 mm 19 mm
Total electric consumption of system ByStar Fiber 6225 27 kW 27 kW 23 kW 44 kW
Total electric consumption of system ByStar Fiber 8025 27 kW 27 kW 23 kW 44 kW

Máy cắt laser Bystronic ByStar Fiber

Máy khắc laser fiber EM20

Thương hiệu: Han’s Laser

Model: EM20

Loại nguồn laser Nguồn Laser HAN’S MOPA
Bước sóng laser 1064nm
Tần số lặp lại Laser 1.6-1000KHz
Công suất Laser 20W
Chất lượng chùm tia ≤1.3
Năng lượng điểm đơn tối đa 9
Tổng công suất ≤0.5KW
Chức năng có thể mở rộng Khắc hiệu chỉnh siêu chính xác, khắc bàn xoay, khắc bitmap
Kích thước máy 900*840*1420mm

Máy khắc laser fiber EM20

Máy cắt laser Prima Power Laser Genius+

Vùng làm việc / Hành trình cắt
Laser Genius+ 1530 | X= 3,150 mm; Y= 1,600 mm; Z= 150 mm
Laser Genius+ 2040 | X= 4,320 mm; Y= 2,200 mm; Z= 150 mm
Laser Genius+ 2060 | X= 6,320 mm; Y= 2,200 mm; Z= 150 mm

Tốc độ trục
100 m/phút (quỹ đạo 140 m/phút)

Nguồn laser
2000 W – 3000 W – 4000 W – 6000 W – 8000 W – 10000 W – 12000 W – 15000 W

Máy cắt laser Prima Power Laser Genius+

Máy Cắt Laser JFY Dòng EFC - 3

Thương hiệu: JFY

Model: EFC II

Máy cắt laser JFY dòng EFC II

Máy cắt laser Prima Power Platino Linear

Vùng làm việc / Hành trình cắt
Platino Linear 1530 | X= 3.048 mm; Y= 1.524 mm; Z= 150 mm
Platino Linear 2040 | X= 4.064 mm; Y= 2.032 mm; Z= 150 mm

Tốc độ trục
100 m/phút (quỹ đạo 140 m/phút)

Độ chính xác vị trí (Pa) và Độ lặp lại (Ps)*
0,03 mm

Nguồn laser
4000 W – 6000 W – 8000 W



*Theo tiêu chuẩn VDI/DGQ 3441: độ chính xác của chi tiết phụ thuộc vào loại chi tiết, quá trình xử lý sơ bộ và điều kiện ứng dụng.

Máy cắt laser Prima Power Platino Linear

Máy cắt laser Bystronic ByCut Smart 6225 / 12025
Technical data ByCut Smart 6225 ByCut Smart 12025
Length 19,507 mm 30,988 mm
Width 8,153 mm 8,661 mm
Height 3,200 mm 3,404 mm
Nominal sheet size (X) 6,198 mm 12,192 mm
Nominal sheet size (Y) 2,540 mm 2,489 mm
Cutting area (X) 6,248 mm 12,294 mm
Cutting area (Y) 2,540 mm 2,591 mm
Cutting area (Z) 152 mm 152 mm
Max. positioning speed parallel axis X/Y 100,000 mm/min 100,000 mm/min
Max. simultaneous positioning speed — 140,005 mm/min
Bilateral repeatability of positioning of one axis R (following ISO 230-2:2014(E)) 0.051 mm 0.051 mm
Averaged, bilateral position deviation of one axis M (following ISO 230-2:2014(E)) 0.102 mm 0.102 mm
Edge detection accuracy (±) 0.508 mm 0.508 mm
Max. workpiece weight 3,647 kg 7,076 kg
Maximum allowed workpiece weight on both shuttle tables 7,294 kg 14,152 kg
Machine weight (without exhaust, chiller and conveyor) 20,999 kg 34,500 kg
Table changeover time 72 s 154 s
Operation BySoft Cell Control Cut BySoft Cell Control Cut

Laser Source Technical Data

Laser source Fiber 3000 Fiber 4000 Fiber 6000 Fiber 10000 Fiber 12000 Fiber 15000 Fiber 20000
Power 3 kW 4 kW 6 kW 10 kW 12 kW 15 kW 20 kW
Range of adjustment 300–3,000 W 400–4,000 W 600–6,000 W 1,000–10,000 W 1,200–12,000 W 1,500–15,000 W 2,000–20,000 W
Wavelength Fiber Fiber Fiber Fiber Fiber Fiber Fiber
Steel (max. cutting sheet thickness) 19 mm 19 mm 25 mm 25 mm 25 mm 25 mm 25 mm
Steel (with option BeamShaper) 19 mm 25 mm 30 mm 30 mm 30 mm 30 mm 30 mm
Stainless steel (max. cutting sheet thickness) 12 mm 15 mm 30 mm 30 mm 30 mm 40 mm 40 mm
Aluminum (max. cutting sheet thickness) 12 mm 19 mm 30 mm 30 mm 30 mm 40 mm 40 mm
Brass (max. sheet thickness) 6 mm 8 mm 15 mm 15 mm 15 mm 15 mm 15 mm
Copper (max. sheet thickness) 6 mm 8 mm 12 mm 15 mm 15 mm 15 mm 15 mm
Total electric consumption of system (with exhaust, chiller) 23 kW 24 kW 25 kW 29 kW 29 kW 29 kW 32 kW

Máy cắt laser Bystronic ByCut Smart 6225 / 12025

Máy cắt laser Bystronic-Bycut-Nova
Technical data Specification
Average bilateral position deviation of one axis M (following ISO 230-2:2014) 0.1 mm
Nominal sheet size (X, Y) 3,000 × 1,500 mm
Stainless steel (max. cutting sheet thickness) 30 mm
Height, approx. [H], w/o dust extraction 2,620 mm
Laser source Fiber 12 kW
Power 12 kW
Max. workpiece weight 1,400 kg
Length, approx. [L] 9,500 mm
Max. positioning speed parallel axis X/Y 100 m/min
Wavelength Fiber
Total power consumption of the system (incl. exhaust and chiller) ≤22 kW
Max. positioning speed simultaneous 140 m/min
Edge detection accuracy (±) 1 mm
Range of adjustment 1.2–12 kW
Cutting area (X/Y/Z) 3,050 × 1,550 × 100 mm
Bilateral repeatability of positioning of one axis R (following ISO 230-2:2014(E)) 0.05 mm
Width, approx. [W] 5,900 mm

Máy cắt laser Bystronic ByCut Nova

Máy cắt laser BySmart Fiber

Machine Specifications

Specification BySmart Fiber 3015 BySmart Fiber 4020
Length 10,490 mm 12,776 mm
Width 6,909 mm 7,544 mm
Height 2,870 mm 2,870 mm
Nominal sheet size (X) 3,048 mm 4,064 mm
Nominal sheet size (Y) 1,524 mm 2,032 mm
Cutting area (X) 3,099 mm 4,115 mm
Cutting area (Y) 1,575 mm 2,108 mm
Cutting area (Z) 102 mm 102 mm
Max. positioning speed parallel axis X/Y 100,000 mm/min 100,000 mm/min
Max. simultaneous positioning speed 140,005 mm/min 140,005 mm/min
Bilateral repeatability of positioning of one axis R (following ISO 230-2:2014(E)) 0.051 mm 0.051 mm
Averaged, bilateral positioning deviation of one axis M (following ISO 230-2:2014(E)) 0.102 mm 0.102 mm
Edge detection accuracy (±) 0.508 mm 0.508 mm
Max. workpiece weight 1,100 kg 1,900 kg
Maximum allowed workpiece weight on both shuttle tables 1,837 kg 3,212 kg
Machine weight (without exhaust, chiller and conveyor) 11,800 kg 14,800 kg
Table changeover time 27 s 36 s
Operation BySoft Cell Control Cut Touchscreen and manual control unit BySoft Cell Control Cut Touchscreen and manual control unit

Laser Source

Specification Fiber 2000 Fiber 3000 Fiber 4000 Fiber 6000 Fiber 10000 Fiber 12000
Power 2 kW 3 kW 4 kW 6 kW 10 kW 12 kW
Range of adjustment 200–2,000 W 300–3,000 W 400–4,000 W 600–6,000 W 1,000–10,000 W 1,200–12,000 W
Wavelength Fiber Fiber Fiber Fiber Fiber Fiber
Steel (max. cutting material thickness) 12 mm 19 mm 19 mm 25 mm 25 mm 25 mm
Steel (with option BeamShaper)* 12 mm 19 mm 25 mm 30 mm 30 mm 30 mm
Steel (Option “Advanced Applications”) — — — — 30 mm 30 mm
Stainless steel (max. cutting material thickness) 6 mm 12 mm 16 mm 30 mm 30 mm 30 mm
Aluminum (max. cutting material thickness) 8 mm 12 mm 19 mm 30 mm 30 mm 30 mm
Brass (max. cutting material thickness) 4 mm 6 mm 8 mm 15 mm 15 mm 15 mm
Copper (max. cutting material thickness) 3 mm 6 mm 8 mm 12 mm 15 mm 15 mm
Total electric consumption of system (with exhaust, chiller) 14 kW 14 kW 15 kW 17 kW 18 kW 21 kW

Máy cắt laser Bystronic ByCut Smart Fiber
